Ceiling Beams
False ceiling beams. Indistinguishable from antique oak, but more easy to install & maintain.
- Moulded from original antique oak beams – every detail captured.
- Cheaper than salvaged antique oak.
- Won’t move, bow, swell or rot.
- Handfinished in a variety of finishes.
- Lightweight and easy to cut, for easy, inexpensive installation.
- Durable and shock resistant.
- Water resistant. Fine in bathrooms.
- Material type: Polymer & Resin Mix.
- Allow 3 to 4 weeks for delivery.
NB. Sizes vary minimally from shown.
Help or samples? Call 0121 449 8525.
Colour Guide (see below, left to right):
Limed Oak, Mellow Oak, Light Oak, Mahogany, Jacobean Oak, Black.
NB. Photographic studio lighting looks lighter than room lighting. Use as a guide only. If colour is important, ask for a sample.
Request or download our brochures.
Captions For Pictures Below:
1. Â Intermediate Beam (Old) with joists. Main Beam 3 vertically to the left with Corbel. Main Beam 1 running from left to right. In Jacobean Oak.
2. In size order: Main Beam 1, Intermediate Beam (New), Half Depth Intermediate Beam, Joists, Hammer Beam Corbel & Medieval Figure, Cottage Plate Rail, Wall Planks. In Jacobean Oak.

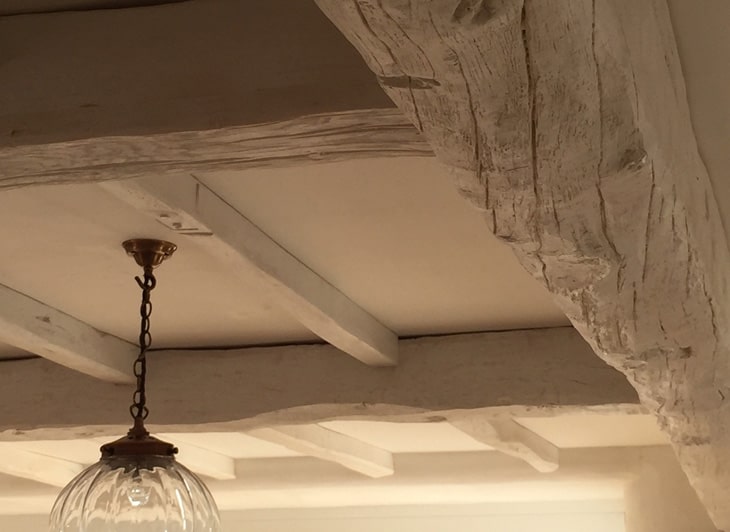

3. Main Beam 1 with Intermediate Beams running off it and Joists running off them. Shown in ‘Unfinished’ white base, which can then be painted.
Showing all 22 results
Main Beam 1 – Full Length
Available in four lengths, Main Beam 1 is our most popular beam. It features a beautifully ‘gnarled’ appearance.
Length: 5460mm
Width: 170mm
Depth: 260mm (max) / 190mm (min)
Internal Width: 115mm (min)
Internal Depth: 120mm
£403.25 – £445.70 inc VAT
Main Beam 1 – 2/3 Length
Available in four lengths, Main Beam 1 is our most popular beam. It features a beautifully ‘gnarled’ appearance.
Length: 3660mm
Width: 170mm
Depth: 260mm (max) / 190mm (min)
Internal Width: 115mm (min)
Internal Depth: 120mm
Main Beam 1 – 1/2 Length
Available in four lengths, Main Beam 1 is our most popular beam. It features a beautifully ‘gnarled’ appearance.
Length: 2730mm
Width: 170mm
Depth: 260mm (max) / 190mm (min)
Internal Width: 115mm (min)
Internal Depth: 120mm
Main Beam 1 – 1/3 Length
Available in four lengths, Main Beam 1 is our most popular beam. It features a beautifully ‘gnarled’ appearance.
Length: 1800mm
Width: 170mm
Depth: 260mm (max) / 190mm (min)
Internal width: 115mm (min)
Internal depth: 120mm
Main Beam 2
Shallower than Main Beam 1 and more ‘regular’. A handy joint cover allows for joining two or more beams to achieve longer lengths.
Length: 3000mm
Width: 175mm
Depth: 128mm
Internal width: 130mm
Internal depth: 110mm
B2 Simulated Iron Bracket
Use to cover joints on Main Beam 2 when running two or more lengths together.
Length: 180mm
Width: 210mm
Depth: 140mm
Main Beam 3
Similar to, but smaller than, Main Beam 2. A handy joint cover allows for joining two or more beams to achieve longer lengths.
Length: 2440mm
Width: 125mm
Depth: 100mm
Internal width: 70mm
Internal depth: 65mm
B3 Simulated Iron Bracket
Use to cover joints on Main Beam 3 when running two or more lengths together.
Length: 155mm
Width: 150mm
Depth: 110mm
Intermediate Beam (Old Style) Full Depth
Beautifully ‘gnarled’ and moulded on 4 sides so it can also be used when all 4 sides will be visible.
Length: 3720mm
Width: 150mm
Depth: 150mm

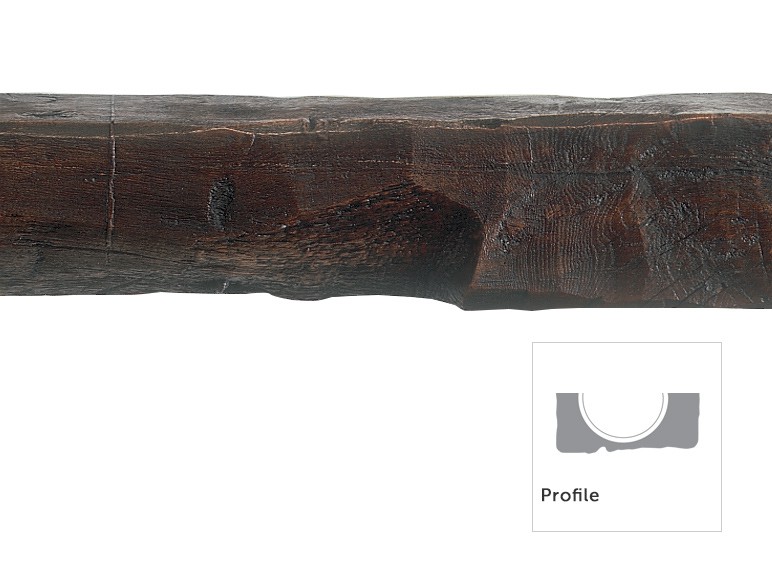

Intermediate Beam (Old Style) Half Depth
An Intermediate Beam simply cut in half for a shallower depth. The ‘New’ style lends itself better to being cut in this way.
Length: 3720mm
Width: 150mm
Depth: 75mm
Intermediate Beam (New Style) Full Depth
Misleadingly called ‘New’ style this beam looks old, but is just more symmetrical and less ‘gnarled’ than the ‘Old’ Style. Moulded on all 4 sides so can also be used when all sides will be visible.
Length: 3720mm
Width: 150mm
Depth: 130mm

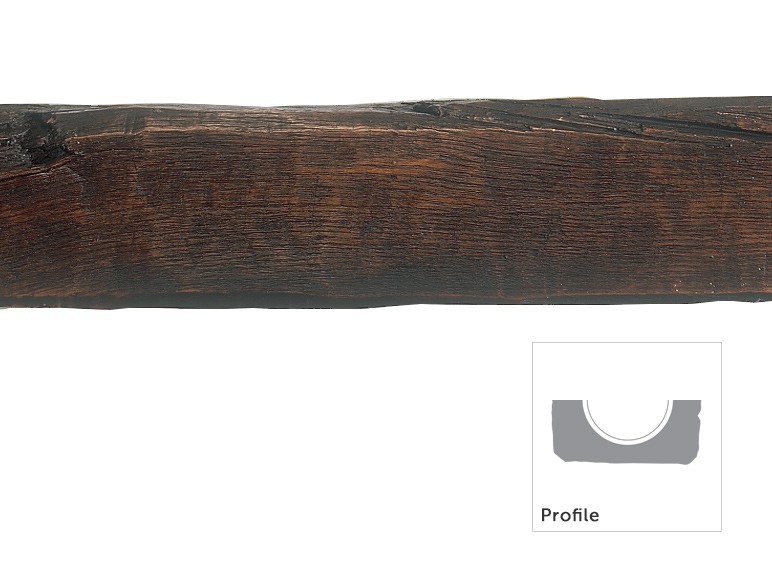

Intermediate Beam (New Style) Half Depth
An Intermediate Beam simply cut in half for a shallower depth. This ‘New’ style lends itself better to this treatment than the ‘Old’ style.
Length: 3720mm
Width: 130mm
Depth: 75mm

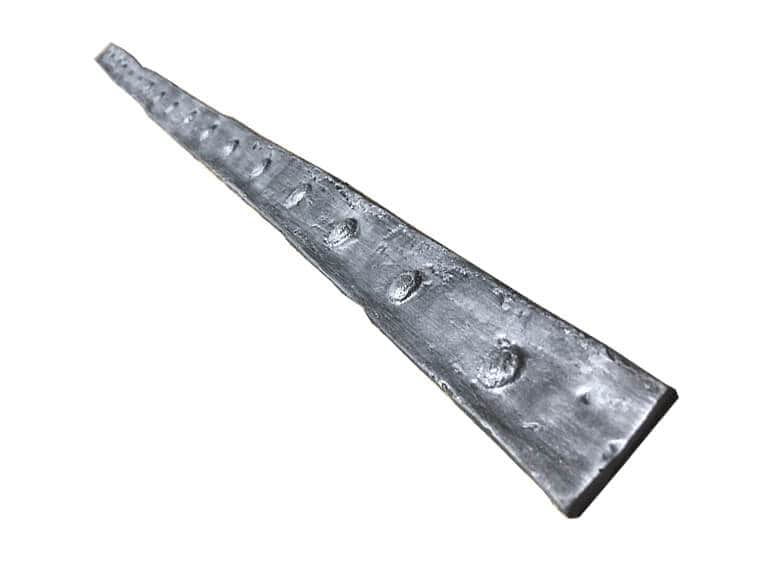

Simulated Riveted Iron Strap
For joining Intermediate Beams (New Style only). Made from rubber, and silver in colour, these are 1m long and can be easily cut to size and used for multiple joints.
Length: 1000mm
Width: 35mm
Thickness: 5mm
6ft Joists
Supplied from 6 different versions to avoid repetition.
Length: 1800mm
Width: 75mm
Depth: 75mm
6ft 6″ Joists
Supplied from 3 different versions to avoid repetition.
Length: 2000mm
Width: 70mm
Depth: 50mm
10ft Joists
Supplied from 3 different versions to avoid repetition.
Length: 3048mm
Width: 75mm
Depth: 50mm
End Grain Panel
For use when an end of beam will be seen. Scribing to shape, filling and staining is required so we recommend that we do this for you (£68.25 per joint) – please call for details.
Height: 325mm
Width: 270mm
Thickness: 10mm
Hammer Beam Corbel
Height: 455mm
Width: 125mm
Projection: 380mm
Medieval Figures
Designed to be used with the Hammer Beam Corbels when additional decoration is required. We supply as a selection of mixed figures.
Height: 440mm
Width: 180mm
Thickness: 90mm
Main/Intermediate Beam Corbel
Designed to be cut into 2 and used either end of your beam. Using one half vertically and the other horizontally can make an attractive feature..
Height: 915mm
Width: 150mm
Projection: 150mm
Joist Corbel
Designed to sit against wall or beam and ceiling, with the joist then sitting on the ‘L’ shaped joist ledge. In effect this can extend the length of a joist by around 150mm per corbel.
Height: 250mm
Width: 75mm
Projection: 250mm
Touch-up Kit
Includes filler, stain and wax.
Delivery
These products are moulded and hand stained to order. Please allow 28 days for delivery. If you need a quicker delivery, please call and we will try to help you.
Deliveries are made on weekdays between 9am and 6pm.
With most orders we use a specialist carrier who will contact you to liaise with you about the delivery date. When we use TNT as an alternative, we will contact you to advise delivery date.
Please note that surcharges apply to any product over 4.8m long. Please phone us for a quote.
In addition surcharges also apply to the following postcodes: AB, DD, IV, KW, PA, PH, BA, BH, BN, BR, BS, BT, CT, DA, DT, EX, GU, HS, IM, LD, LL, ME, NR, PL, PO, RH, RG, SA, SN, SO, SP, SY, TA, TN, TQ & TR. Please phone us for a quote.
When you receive your order, the driver won’t wait for you to check your goods. Please check the packaging. If there is any damage, sign as ‘damaged’ (even though the contents may not be).
Once the driver has left, check the contents immediately. Damage is infrequent, and we will replace any damaged goods, but you must notify us within 1 working day of receipt.
Request or download our brochures.
Need Some Help?
If you need any help working out which beams are best for you, please give us a call.
Installation Guides
Returns Policy For This Range
As this range is made to order, unfortunately we cannot accept returns. Please do therefore ensure that you are happy with the product before you order. If you have any queries, please call us.
